Solange Émile An LED light wiring harness with switch and relay is an essential component for safely and effectively powering auxiliary LED lights on vehicles. This pre-wired system simplifies the installation process, providing a secure and reliable connection between the vehicle’s battery and the LED lights. Utilizing a relay ensures that the LED lights receive sufficient power without overloading the vehicle’s electrical system. The included switch allows for easy on/off control of the lights, enhancing convenience and safety. Proper wiring is paramount to prevent electrical issues and ensure optimal performance of the LED lighting system.
The implementation of an LED light wiring harness with switch and relay offers significant advantages, particularly for off-road vehicles, trucks, and other applications requiring enhanced lighting. These harnesses typically include a fuse to protect the circuit from overcurrent and short circuits, adding another layer of safety. The relay acts as an intermediary, using a low-current signal from the switch to control a high-current circuit to the LED lights. This reduces the load on the switch and helps to prolong its lifespan.
A complete LED light wiring harness with switch and relay kit will generally contain all the necessary components, such as wiring, relay, switch, fuse, and connectors, making installation straightforward. These harnesses are designed to be compatible with a wide range of LED lights, offering versatility and flexibility. By using a pre-wired harness, the risk of incorrect wiring and potential damage to the vehicle’s electrical system is minimized. These factors contribute to a safer and more efficient lighting setup.
Understanding the Core Components of an LED Light Wiring Harness with Switch and Relay
The functionalities surrounding an LED light wiring harness with switch and relay often arise in various forums, social media, and even everyday conversations, indicating how relevant this issue is within society. Many users seek clarification on the specific roles of each component within the harness. This concern stems from the critical need to ensure proper installation and operation of auxiliary LED lights, which have become increasingly popular for off-road driving and other applications. A thorough understanding of each component’s purpose can prevent electrical issues and maximize the lifespan of both the LED lights and the vehicle’s electrical system.
A key point of discussion involves the difference between directly wiring LED lights to the vehicle’s battery and utilizing a wiring harness with a relay. Direct wiring can overload the vehicle’s electrical system, potentially causing damage or even fire hazards. The relay, acting as an electrical switch controlled by a low-current circuit, mitigates this risk by allowing the high-current circuit for the LED lights to be powered directly from the battery, while the switch only controls the relay. This configuration significantly reduces the load on the vehicle’s electrical system and enhances safety. The fuse provides an additional safety net, protecting the circuit from overcurrent and short circuits.
Discussions also focus on the importance of using the correct gauge wiring for the LED lights’ power requirements. Undersized wiring can lead to voltage drop, resulting in dim or flickering lights. It can also overheat and potentially cause a fire. Properly sized wiring ensures that the LED lights receive adequate power, maximizing their brightness and performance. Therefore, selecting a wiring harness with the appropriate wire gauge is crucial for optimal functionality and safety, it helps to create an effective and lasting LED light installation.
Step-by-Step Guide to Installing an LED Light Wiring Harness with Switch and Relay
Proper installation of an LED light wiring harness is vital for ensuring the safety and performance of auxiliary LED lights.
Step 1: Gather Necessary Tools and Materials
Ensure availability of required tools such as wire strippers, crimpers, a multimeter, and a set of screwdrivers. This initial preparation streamlines the installation process by eliminating the need to pause and search for tools, saving time and preventing unnecessary delays. Correct tools are essential for creating reliable electrical connections, reducing the likelihood of loose connections and electrical faults. Proper equipment, including safety goggles and gloves, helps protect against potential hazards during the installation process.
Step 2: Connect the Relay
The relay typically has four or five terminals, each serving a specific function. Connect the positive wire from the battery to the relay’s power input terminal (usually marked with 30). Connect the relay’s ground terminal (85) to a suitable ground point on the vehicle’s chassis. Connect the relay’s switch input terminal (86) to the positive wire from the switch. Lastly, connect the relay’s output terminal (87) to the positive wire of the LED light. Following these steps ensures that the relay will properly control the flow of electricity to the LED lights, preventing overload and enhancing electrical safety.
Step 3: Connect the Switch
The switch will typically have three terminals: power input, output, and ground. Connect the switch’s power input terminal to a suitable power source, such as an accessory power wire or directly to the battery through a fuse. Connect the switch’s output terminal to the relay’s switch input terminal. Connect the switch’s ground terminal to a suitable ground point on the vehicle. Confirm the switch and relay connections are correct to avoid any malfunctions when operating the LED lights.
Step 4: Connect the LED Lights
Connect the positive wire from the LED lights to the relay’s output terminal. Connect the negative wire from the LED lights to a suitable ground point on the vehicle. Ensure that the connections are secure and properly insulated to prevent shorts and ensure optimal performance. Using crimped connectors and heat shrink tubing provides a robust and weatherproof connection, vital for long-lasting reliability, particularly in outdoor applications.
Step 5: Test the System
After completing all the connections, test the system by turning on the switch. The LED lights should illuminate immediately. If the lights do not turn on, double-check all the connections and the fuse. Using a multimeter to verify voltage and continuity can assist in diagnosing any issues. Once the system is confirmed to be functioning correctly, properly secure the wiring harness and components to prevent movement and potential damage.
Frequently Asked Questions About LED Light Wiring Harnesses with Switch and Relay
Many questions arise concerning the proper use and installation of an LED light wiring harness with switch and relay, highlighting the importance of addressing common concerns. Understanding these frequently asked questions can enhance the user experience, promote safety, and ensure the longevity of the lighting system. These queries often relate to the specific components, wiring configurations, and troubleshooting common issues.
What is the purpose of the relay in an LED light wiring harness?
The relay serves as an electrical switch that controls the flow of high-current electricity to the LED lights while being activated by a low-current signal from the switch. This arrangement prevents the switch from being overloaded, thereby extending its lifespan and enhancing safety. By using a relay, the power for the LED lights is drawn directly from the battery, ensuring a stable and sufficient power supply. This setup is essential for preventing damage to the vehicle’s electrical system and maintaining optimal lighting performance.
Can I use an LED light wiring harness with any type of LED light?
Most LED light wiring harnesses are designed to be compatible with a wide range of LED lights, but it is crucial to verify the harness’s current rating and compatibility with the specific LED lights being used. Exceeding the harness’s current rating can cause overheating and potentially lead to a fire. Ensure that the wire gauge is appropriate for the LED lights’ power consumption to prevent voltage drop and ensure optimal brightness. Checking compatibility beforehand ensures a safe and efficient installation.
How do I choose the correct gauge wiring for my LED light wiring harness?
Selecting the correct gauge wiring is essential for ensuring adequate power delivery to the LED lights and preventing overheating. The appropriate wire gauge depends on the power consumption (wattage) of the LED lights and the length of the wiring run. Refer to a wiring gauge chart to determine the correct gauge based on these factors. Using undersized wiring can lead to voltage drop, dimming the lights, and posing a fire hazard. Properly sized wiring ensures efficient power transfer and reliable performance.
What should I do if my LED lights are not working after installing the wiring harness?
If the LED lights fail to illuminate after installation, begin by checking the fuse in the wiring harness. A blown fuse is a common cause of malfunction and can be easily replaced. Verify that all connections are secure and properly grounded. Use a multimeter to test the voltage at the LED lights and the relay to ensure that power is reaching each component. Inspect the switch for proper functionality and check that the relay is clicking when the switch is activated. Systematic troubleshooting can help identify and resolve the issue quickly.
Where is the best place to mount the relay for an LED light wiring harness?
Mounting the relay in a dry and protected location is crucial for preventing corrosion and extending its lifespan. Choose a location that is easily accessible for maintenance and troubleshooting. Avoid mounting the relay near sources of extreme heat, such as the engine exhaust, as this can damage the relay. Securing the relay to a solid surface with appropriate hardware prevents vibrations and movement, which can lead to premature failure. A properly mounted relay ensures reliable performance of the LED lighting system.
How can I troubleshoot a faulty switch in an LED light wiring harness?
If the switch in the LED light wiring harness is not functioning correctly, begin by inspecting the wiring connections to the switch. Ensure that the connections are secure and free from corrosion. Use a multimeter to test the continuity of the switch in both the on and off positions. If the switch shows no continuity or erratic readings, it may need to be replaced. Replacing a faulty switch is a straightforward process and can restore functionality to the LED lighting system.
The widespread use of LED light wiring harness with switch and relay stems from their ability to simplify the process of connecting auxiliary lights to a vehicle. These pre-wired systems reduce the complexity of wiring, minimizing the risk of errors and potential electrical problems. A comprehensive kit contains all necessary components, including the relay, switch, fuse, and wiring, streamlining the installation process. This comprehensive approach ensures that users have everything they need to complete the installation without needing to source additional parts.
The relay’s function is to protect the vehicle’s electrical system by isolating the high-current circuit of the LED lights from the low-current circuit of the switch. This prevents overloading the switch and ensures that the LED lights receive a stable and consistent power supply. The fuse provides an additional layer of protection, safeguarding the circuit from overcurrent and short circuits. Together, these components work to ensure a safe and reliable lighting system.
A high-quality LED light wiring harness will be constructed with durable materials and properly sized wiring to handle the LED lights’ power requirements. This ensures that the lights operate at their full potential and that the wiring does not overheat or cause voltage drop. Selecting a harness with appropriate wire gauge and durable construction is crucial for long-lasting performance and reliability. Properly installed and maintained, an LED light wiring harness can provide years of dependable service, enhancing safety and visibility on the road.
Key Aspects of an LED Light Wiring Harness with Switch and Relay
Focusing on the essential aspects of an LED light wiring harness with switch and relay helps to understand the important considerations. An LED light wiring harness with switch and relay is a complete system of components designed to connect auxiliary LED lights to a vehicle’s electrical system safely and efficiently. The relay, switch, fuse, wiring and connectors are its main components. Its reliable performance, protection, simplicity, and versatility are key. It is designed for use in a diverse range of applications, from off-road vehicles to work trucks.
Relay
The relay acts as an electrical switch that is activated by a low-current signal from the switch, while allowing a high-current circuit to power the LED lights directly from the battery. This prevents the switch from being overloaded, extending its lifespan and improving overall safety. Selecting a relay with an appropriate current rating for the LED lights is essential to prevent overheating and potential failure. The relay ensures that the LED lights receive a stable and consistent power supply, maximizing their performance.
Switch
The switch provides a convenient way to turn the LED lights on and off. Selecting a switch that is durable and easy to operate is essential for user satisfaction. The switch should be rated to handle the current required to activate the relay, ensuring reliable performance. Waterproof switches are available for applications where exposure to moisture is a concern. A properly functioning switch allows for easy control of the LED lights, enhancing safety and convenience.
Fuse
The fuse protects the wiring harness and the vehicle’s electrical system from overcurrent and short circuits. Selecting a fuse with the appropriate amperage rating for the LED lights is essential. If the current draw exceeds the fuse’s rating, it will blow, interrupting the circuit and preventing damage. Replacing a blown fuse with one of the correct rating restores functionality to the LED lighting system. Fuses are a critical component of the wiring harness, providing essential protection against electrical faults.
Connectors
The connectors are used to connect the various components of the wiring harness, such as the relay, switch, fuse, and LED lights. Using high-quality connectors that are properly crimped or soldered ensures a reliable electrical connection. Waterproof connectors are available for applications where exposure to moisture is a concern. Secure and properly insulated connectors prevent shorts and ensure optimal performance. Reliable connectors are essential for the overall performance and longevity of the LED lighting system.
Examining each of these elements in detail will bring a better understanding of the purpose, function, and how it works to make the system operate properly. Examining their roles in the wiring harness and their impact on the effectiveness and safety of LED lighting installations, allows for a better understanding of how each component contributes to the entire system, thus ensuring optimal performance and reliability in a variety of applications and conditions.
Choosing a wiring harness involves selecting the right components. The quality of each of these components directly affects the reliability and safety of the LED lighting system. Therefore, careful consideration of these aspects is essential for ensuring optimal performance and long-term durability.
Helpful Tips for Maintaining Your LED Light Wiring Harness with Switch and Relay
Maintaining an LED light wiring harness with switch and relay ensures its longevity and consistent performance. Regular inspections and proper care can prevent electrical issues and ensure the safe operation of auxiliary LED lights.
A well-maintained harness is crucial for both safety and performance, preventing potential hazards and ensuring the reliability of the lighting system. Addressing minor issues promptly can prevent them from escalating into major problems, saving time and money in the long run. These measures help to guarantee the proper and consistent performance of the harness over an extended period.
Regularly Inspect Wiring
Periodically inspect the wiring for any signs of damage, such as fraying, cracking, or exposure. Replace damaged wiring promptly to prevent short circuits and potential electrical hazards. Ensure that all connections are secure and free from corrosion. Regular inspections help to identify and address potential issues before they become major problems, ensuring the continued safe and reliable operation of the LED lighting system.
Check the Fuse
Check the fuse regularly to ensure it is in good condition. A blown fuse indicates an overcurrent or short circuit. Replace the fuse with one of the correct amperage rating. If the fuse continues to blow, investigate the cause of the overcurrent or short circuit. Maintaining the fuse ensures that the wiring harness is protected from electrical faults, preventing damage to the system and ensuring safe operation.
Ensure Proper Grounding
Proper grounding is essential for the correct operation of the LED lighting system. Ensure that the ground connections are secure and free from corrosion. A poor ground connection can cause voltage drop and dimming of the lights. Clean the ground connection points periodically to remove any rust or corrosion. Good grounding provides a stable and reliable electrical path, ensuring optimal performance of the LED lights.
Protect Wiring from the Elements
Protect the wiring harness from exposure to the elements, such as water, mud, and debris. Use conduit or wire loom to protect the wiring from physical damage. Apply dielectric grease to the connections to prevent corrosion. Protecting the wiring harness extends its lifespan and ensures reliable performance in various environmental conditions.
Secure the Wiring Harness
Properly secure the wiring harness to prevent movement and potential damage. Use zip ties or clamps to secure the wiring to the vehicle’s frame or other stable surfaces. Ensure that the wiring is not rubbing against sharp edges or hot components. Securing the wiring harness prevents chafing and potential shorts, ensuring the long-term reliability of the LED lighting system.
Test the Switch and Relay
Periodically test the switch and relay to ensure they are functioning correctly. The switch should turn the LED lights on and off without any issues. The relay should click when the switch is activated. If the switch or relay is not functioning correctly, replace it promptly. Maintaining the switch and relay ensures that the LED lights are controlled reliably and efficiently.
The integration of an LED light wiring harness with switch and relay into a vehicle’s electrical system is often a necessary step when adding auxiliary lighting. These harnesses not only simplify the installation process but also enhance safety and reliability. The relay, in particular, plays a crucial role in protecting the vehicle’s electrical system by isolating the high-current circuit of the LED lights from the low-current circuit of the switch.
A high-quality wiring harness will feature durable components and properly sized wiring, ensuring optimal performance and longevity. Regular maintenance, including inspections of the wiring, fuse, and connections, can help prevent potential issues and extend the lifespan of the harness. Properly installed and maintained, an LED light wiring harness can provide years of dependable service, enhancing safety and visibility on the road.
In conclusion, an LED light wiring harness with switch and relay is a vital component for safely and effectively powering auxiliary LED lights, offering ease of installation, enhanced safety, and reliable performance.

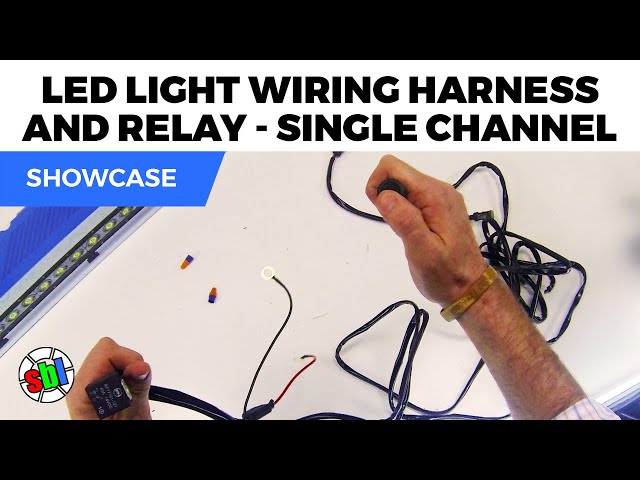

Youtube Video:
