Solange Émile Understanding a ceiling fan with light wiring diagram is crucial for safe and effective installation or repair. This article provides a comprehensive guide to interpreting and implementing these diagrams, ensuring a successful and compliant electrical setup. The ability to read and understand a wiring diagram prevents electrical hazards and ensures the proper functioning of both the fan and the light fixture. Furthermore, it allows homeowners to troubleshoot issues and potentially save on professional repair costs. A clear understanding fosters confidence in handling basic electrical tasks related to ceiling fans. This guide aims to demystify the process and empower individuals with the knowledge necessary for safe and effective installations.
The term “ceiling fan with light wiring diagram” refers to a visual representation of the electrical connections required to properly install and operate a ceiling fan that includes a light fixture. These diagrams are essential for connecting the fan motor, light kit, and power source in the correct configuration. An accurate ceiling fan with light wiring diagram ensures that the fan spins in the correct direction, the light functions properly, and all connections are safely insulated. Without a clear wiring diagram, attempting to install or repair a ceiling fan with a light can be hazardous.
Different models of ceiling fans with lights may have varying wiring configurations, making it essential to consult the specific diagram provided by the manufacturer. Variations in wiring may arise from the type of control mechanism (e.g., remote control, wall switch), the number of speeds the fan offers, or the type of light fixture included. Understanding these variations through the correct ceiling fan with light wiring diagram is crucial for correct installation. This guide covers fundamental principles applicable to most diagrams.
Decoding the Ceiling Fan with Light Wiring Diagram
The topic of ceiling fan with light wiring diagrams frequently arises in various forums, social media, and even everyday conversations, indicating how relevant this issue is within society. Many homeowners encounter challenges when installing or troubleshooting their ceiling fans, often seeking guidance on understanding the complex wiring. Online forums and social media groups dedicated to home improvement are filled with questions about identifying wires, connecting switches, and resolving common problems such as flickering lights or malfunctioning fans. This high level of interest underscores the practical importance of mastering the interpretation of these diagrams.
Discussions about ceiling fan with light wiring diagrams also highlight the need for clear and accessible information. Many individuals find the standard wiring diagrams confusing, especially those unfamiliar with electrical terminology. The diagrams often use symbols and abbreviations that are not immediately obvious, leading to misinterpretations and potential errors. Therefore, there is a constant demand for simplified explanations and step-by-step guides that can help individuals confidently tackle the task of wiring a ceiling fan with a light.
The recurring theme in these discussions is the emphasis on safety. Incorrect wiring can lead to serious electrical hazards, including shocks, short circuits, and even fires. Therefore, it is crucial to approach the task of wiring a ceiling fan with light with caution and to prioritize safety measures. Many forums and online resources stress the importance of turning off the power before working on any electrical connections and of consulting a qualified electrician if there is any doubt about the proper procedure. Understanding and adhering to a ceiling fan with light wiring diagram is paramount for safe installation and operation.
Essential Components in a Ceiling Fan with Light Wiring Diagram
A typical ceiling fan with light wiring diagram includes several key components, each playing a vital role in the functionality and safety of the fan and light. These components include the power source, the fan motor, the light fixture, switches, and various wires connecting them all. Understanding the function of each component is essential for interpreting the wiring diagram correctly.
Identify the Power Source
The power source is typically a standard electrical outlet box in the ceiling. The wiring diagram will indicate the incoming hot (black), neutral (white), and ground (green or bare) wires. It is crucial to correctly identify these wires to avoid short circuits or electrical shocks. Always turn off the power at the breaker before working with any electrical wires.
Locate the Fan Motor Connections
The fan motor typically has several wires, often color-coded, that control the fan’s speed and direction. The wiring diagram will specify which wires connect to the power source and which connect to the switch. The correct connection of these wires ensures that the fan operates at the desired speed and direction. Some diagrams may also include connections for a remote control receiver.
Identify the Light Fixture Connections
The light fixture usually has two wires: one for the hot wire and one for the neutral wire. The wiring diagram will show how these wires connect to the power source and the switch. Proper connection of these wires ensures that the light turns on and off correctly and that the correct voltage is supplied to the bulb. Always use the appropriate wattage bulb for the fixture to prevent overheating.
Understand the Switch Connections
The switch controls the flow of electricity to the fan and the light. The wiring diagram will show how the switch connects to the power source, the fan motor, and the light fixture. Some fans may have separate switches for the fan and the light, while others may have a single switch that controls both. The correct connection of the switch ensures that the fan and the light can be turned on and off independently or together, as desired.
Grounding Wire Connection
The ground wire (green or bare copper) is a critical safety feature. It provides a path for electricity to flow back to the source in the event of a short circuit, preventing electrical shocks. The wiring diagram will show how the ground wire connects to the fan motor, the light fixture, and the electrical outlet box. Always ensure that the ground wire is properly connected to all components.
Frequently Asked Questions About Ceiling Fan with Light Wiring Diagrams
Navigating the complexities of a ceiling fan with light wiring diagram often leads to numerous questions from homeowners and DIY enthusiasts alike. Common queries revolve around identifying specific wires, understanding the function of different components, and troubleshooting common issues that arise during installation or repair. Addressing these frequently asked questions can help to demystify the wiring process and empower individuals to confidently tackle their ceiling fan projects. These questions often reflect the practical challenges and concerns that people encounter when working with electrical wiring.
What do the different wire colors represent in a ceiling fan with light wiring diagram?

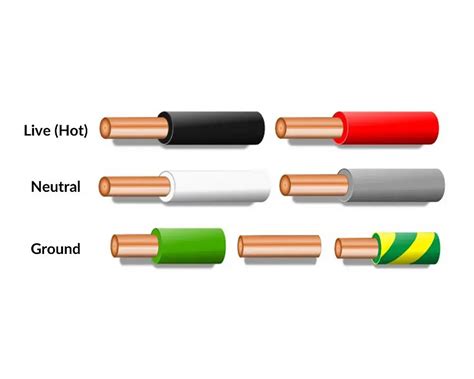

Wire colors in a ceiling fan with light wiring diagram are standardized to indicate the function of each wire. Black typically represents the hot wire, carrying the electrical current from the power source. White represents the neutral wire, providing a return path for the current. Green or bare copper represents the ground wire, offering a safety path for electricity in the event of a fault. Understanding these color codes is essential for safely and correctly connecting the wires.
How do I identify the correct wires to connect to the fan motor?
The wiring diagram provided with your ceiling fan will specify the correct connections for the fan motor wires. Typically, these wires are color-coded and correspond to different fan speeds. Consult the wiring diagram to determine which wire controls high speed, medium speed, and low speed. Connecting the wires according to the diagram ensures that the fan operates at the desired speed settings.
What should I do if my ceiling fan light is flickering?
A flickering light in a ceiling fan can be caused by several factors, including loose connections, a faulty bulb, or an incompatible dimmer switch. First, check all wire connections to ensure they are secure. If the connections are secure, try replacing the bulb with a new one. If the flickering persists, the dimmer switch may be incompatible with the LED or CFL bulb. Consider replacing the dimmer switch with one that is compatible with the bulb type.
How do I reverse the direction of my ceiling fan?
Most ceiling fans have a reverse switch located on the fan motor housing. This switch allows you to change the direction of the fan blades, which can be useful for circulating air in different seasons. In the summer, the fan should rotate counterclockwise to create a cooling breeze. In the winter, the fan should rotate clockwise to draw warm air down from the ceiling. Consult your fan’s manual for the exact location of the reverse switch.
What safety precautions should I take when working with electrical wiring?
Safety is paramount when working with electrical wiring. Always turn off the power at the breaker before working on any electrical connections. Use insulated tools and wear rubber-soled shoes to minimize the risk of electrical shock. Double-check all wire connections to ensure they are secure and properly insulated. If you are unsure about any aspect of the wiring, consult a qualified electrician.
What do I do if the wiring diagram doesn’t match my ceiling fan?
If the wiring diagram doesn’t match your ceiling fan, it may be due to variations in models or manufacturers. In this case, consult the manufacturer’s website or contact their customer support for assistance. They may be able to provide a more specific wiring diagram or offer guidance on how to adapt the existing diagram to your fan. If you are unable to find a suitable diagram, it is best to consult a qualified electrician.
Addressing these frequently asked questions provides a starting point for understanding and troubleshooting ceiling fan with light wiring diagrams. By familiarizing yourself with common issues and their solutions, you can approach your ceiling fan projects with greater confidence and ensure a safe and successful outcome. Always prioritize safety and consult a qualified electrician if you have any doubts or concerns about the wiring process. Correct interpretation of a ceiling fan with light wiring diagram minimizes potential hazard.
Key Aspects of Understanding a Ceiling Fan with Light Wiring Diagram
Understanding a ceiling fan with light wiring diagram requires attention to several key aspects. These aspects relate to the diagram’s components, their functions, and the overall layout. By focusing on these essential elements, one can effectively interpret and utilize the diagram for safe and successful installation or repair. A meticulous approach to these aspects minimizes the risk of errors and ensures proper functioning of the ceiling fan with light.
Voltage
Voltage, measured in volts, is the electrical potential difference that drives current through the wires. In most residential settings, ceiling fans operate on 120 volts. The wiring diagram will specify the voltage requirements for the fan and light. Ensuring the correct voltage is supplied is crucial for preventing damage to the fan and light fixture.
Amperage
Amperage, measured in amps, is the measure of electrical current flowing through the wires. The wiring diagram will indicate the amperage rating of the circuit breaker that should be used for the ceiling fan. Using the correct amperage rating prevents overloading the circuit and reduces the risk of electrical fires. Exceeding amperage of ceiling fan with light wiring diagram can be dangerous.
Connections
Connections refer to the points where wires are joined together to create an electrical circuit. The wiring diagram will clearly show the location and type of connections. Secure and properly insulated connections are essential for preventing short circuits and ensuring reliable operation. Loose or poorly insulated connections can lead to flickering lights, malfunctioning fans, and potential electrical hazards.
Switches
Switches control the flow of electricity to the fan and the light. The wiring diagram will show how the switches are connected to the power source, the fan motor, and the light fixture. Different types of switches may be used, such as single-pole switches, three-way switches, or dimmer switches. Understanding the function of each switch is crucial for controlling the fan and light independently or together.
Detailed attention to each aspect, like voltage, amperage, connections and switches, is crucial for proper installation. Paying attention to the symbols of ceiling fan with light wiring diagram can maximize safety.
By understanding these key aspects, one can effectively interpret a ceiling fan with light wiring diagram and confidently tackle installation or repair tasks. Each component plays a crucial role in the overall functionality and safety of the electrical system. Consulting with a certified electrician for further assistance regarding a ceiling fan with light wiring diagram may be necessary.
Tips for Working with a Ceiling Fan with Light Wiring Diagram
Working with a ceiling fan with light wiring diagram can seem daunting, but with the right approach and a few helpful tips, the process can be simplified and made safer. These tips cover everything from preparing the work area to troubleshooting common issues, ensuring a smooth and successful installation or repair. These tips are designed to make understanding and implementing the diagram more accessible.
Several tips can help ensure a safe and successful installation or repair when using a ceiling fan with light wiring diagram. Following these guidelines minimizes potential risks and optimizes the performance of the ceiling fan and light fixture.
Turn Off the Power
The most important safety precaution is to turn off the power at the circuit breaker before working on any electrical connections. This prevents electrical shocks and potential injuries. Double-check that the power is off by using a voltage tester on the wires.
Read the Wiring Diagram Carefully
Take the time to thoroughly read and understand the wiring diagram before starting any work. Identify the different wires, components, and connections. If you are unsure about any aspect of the diagram, consult a qualified electrician.
Use the Right Tools
Use insulated tools specifically designed for electrical work. These tools provide a layer of protection against electrical shocks. Also, ensure that your tools are in good condition and properly maintained.
Label the Wires
Before disconnecting any wires, label them with tape or wire markers. This will help you remember where each wire goes and prevent confusion during reassembly. Use a consistent labeling system and double-check your labels before disconnecting any wires.
Make Secure Connections
Ensure that all wire connections are secure and properly insulated. Use wire connectors or electrical tape to insulate the connections. Loose or poorly insulated connections can lead to flickering lights, malfunctioning fans, and potential electrical hazards.
Test Your Work
After completing the wiring, test your work to ensure that everything is functioning correctly. Turn on the power at the circuit breaker and check the fan and light. If anything is not working as expected, turn off the power and re-check your wiring.
Consult a Professional
If you are unsure about any aspect of the wiring or if you encounter any problems, consult a qualified electrician. A professional can help you troubleshoot issues and ensure that the wiring is safe and compliant with electrical codes.
The ceiling fan with light wiring diagram stands as a crucial guide in electrical setups, its significance often underestimated by those unfamiliar with electrical work. Correctly interpreting and applying these diagrams is essential for ensuring both the functionality and safety of ceiling fans with integrated lighting. It’s not merely about connecting wires; it’s about understanding the flow of electricity and adhering to established safety standards. Without a clear grasp of these diagrams, individuals risk not only damaging their appliances but also exposing themselves to potentially dangerous electrical hazards.
By understanding the nuances of a ceiling fan with light wiring diagram, homeowners can undertake installations and repairs with confidence, knowing they are adhering to best practices. This knowledge can also prove invaluable when troubleshooting issues, allowing for quicker and more accurate diagnoses of problems. Moreover, it empowers individuals to make informed decisions when hiring electricians, ensuring they can effectively communicate their needs and understand the proposed solutions.
In conclusion, the ceiling fan with light wiring diagram is an indispensable tool for anyone working with these appliances. Mastering its intricacies promotes safety, efficiency, and a greater understanding of electrical systems within the home. Proper adherence to and understanding of the diagram is essential for correct and safe function.
